Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Netoptouch
  • Model Number: NT-8809
  • Touch Screen: infrared touch screen
  • Function: Payment kiosk
  • Application: Free standing in door
  • Display: TFT LCD or LED monitor
  • Default monitor size: 22''+19''
  • Input devicve: Touch panel
  • Extra devices: Cash validator and printer
  • Response time: about 8ms
  • Kiosk frame: 1.2~1.5mm steel
  • Warranty: One year

Packaging & Delivery

Packaging Details: Anti-static film, Foam, Carton and Wooden Case
Delivery Detail: Shipped in 25 days after payment

Customized self kiosk payment machine accept cash /coin/QRcode scanner

Configuration:

Top monitor+touch screen+below monitor+embed computer+enclosure+bill acceptor+thermal printer+QR code scanner



Metal keyboard, camera,WIFI, 3G, Bluetooth can also add to the kiosk

Detailed specification:



Default Computer part

CPU:

a. CPU: Intel G2030 CPU

b. Hard disk: Seagate 500G

c. RAM: KingMAX 2GB

d. Ports: USB ports, RS-232 ports

e. Intel H61 motherboard

RAM: 2~4GB,   Hard Disk: 500G

1RS-232 Ports, 2 LTP, 4 USB Ports, 1 10/100M Net Port

Integrated Net Card, Sound Card, Integrate graphics Card

 power supply

Top monitor (22 inch LCD)

Brightness: 300cd/m2

Angle: horizontal 100°above, Vertical 80° above
Contrast:1000:1

Backlight tube life: more than 40,000hours
Operating temperature: -20-50°C
Response Time: 16ms, Dot pitch: 0.297

Max. resolution: 1920x1080

 Below monitor (19 inch LCD)

Brightness: 300cd/m2

Angle: horizontal 100°above, Vertical 80° above
Contrast:
1000:1

Backlight tube life: more than 40,000hours

Operating temperature: -20-50°C

Response Time: 10ms

Dot pitch: 0.297

Max. resolution: 1280×1024

Default Touch screen (19 inch Infrared )

High Transparence, high precision and durability

Resolution: 4096×4096

Brightness: 300cd/m2

lens transmission: 92% ~98%

Orientation precision<2mm(0.080 inch), pure tempered glass

Single-point touch Life expectancy more 50,000,000 times



antirust, anti-acid, anti-dust

Enclosure

Durable steel frame, Slim and smart design,  Easy to install and operate , 1.2~mm1.5mm thickness cold rolled steel,  2mm is available.

Moisture proof, Antirust, Anti-acid, Anti dust, Static free, have color and Logo

upon request.

Left and right bi-channel,  amplified output, Multimedia speaker

OS Software

Windows 7, Microsoft Windows 7/ Android  All hardware driver available



Additional parts:

1. Printer: Epson 80MM thermal printer with auto cutter
2. Cash acceptor: ITL NV09 bill acceptor(with RS232 interface, DC12V power, accepts multi-currency, such as USD, EUR and some small currencies.
with 600 notes cash collector and GD 500 coin acceptor with coin collectore.
3. QR code scanner



FAQ: 1. Can I choose kiosk's color?

R: Yes, color is optional based on Pantone Chart.

2. I don't like the above machine's appearence, do you have another models?

R: Sure, more models are available. Further more, you are welcome to provide us rough drawings about the machine you need, we'll be responsible for others.

3. Does this kiosk approve any certificate? Voltage here is 110v, can this kiosk still work?

R: Our kiosk approved CE, FCC and RoHs.

For different country's, we'll use different power supply.

4. What's the material of this kiosk case? Will it be rust if we use it outdoor places?

R: This kiosk case is made from 1.2~1.5mm cold rolled steel. We painted it with carcoat painting, normally it will not be rusted. But as there are lots of louvers to radiat heat for kiosk's embed computer, we suggest you only install it in indoor places.

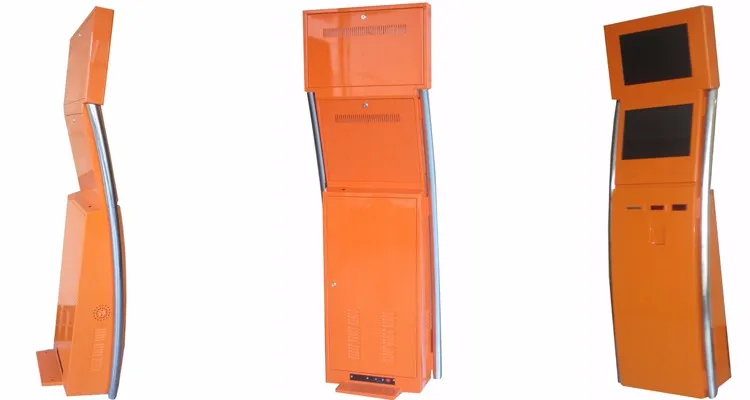

Product process of the production:

Company Information:

Shenzhen Netoptouch Technology Co., Ltd., established in 2003, is a professional manufacturer engaged in the research, development, production, sale and service of Kiosks, Touch Screen Panels, Smart queue management systems and Advertising players. We are located in Futian District, Shenzhen City with convenient transportation access.

Certificate

Packaging & Shipping:

 We offer all kinds of logistics methods in favor of our world wide clients.Shipping from Shenzhen to each corner of the world by sea, airlines to the nearest seaport and city, or combined sea+land directly to your facility.

We also have good relationship with major courier companies DHL, TNT, Fedex, UPS which enables us to deliver our products quickly and safely to your hand.



Want to know more about our products and company,welcome to contact us at any time.
