All-in-one cash Payment Kiosk Machine/Bill Payment Kiosk

FOB Reference Price:Get Latest Price
US $1,000-3,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Shenzhen, Guangzhou or Hongkong
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Payment terminal
Input device:
Touch screen
Touch panel:
Infrared touch panel
indoor free standing
One set
One year
Key word:
kiosk machine
key words:
payment terminal
Packaging & Delivery
Packaging Details
Anti static bag, Foam, Carton and Wooden case
Delivery Time
Shipped in 25 days after payment

All-in-one cash Payment Kiosk Machine/Bill Payment Kiosk

This all-in-one kiosk equips with bill acceptor, thermal printer, door sensor and 3G route. Worlk with control

software, it is able to recognize how much the insert money is and self print receipt via touch the screen. It

not only connect to internet via wired netcard, but also via 3G route.

1. Software for this all-in-one payment kiosk is available, only for English Version.
2. Only with bill acceptor as payment method, this payment kiosk machine only accept cash payment, and
only bill&banknotes are available.
3. If you need, we can order Licensed Windows Operate System for you, but Windows 10 is not available.
Android system is available.
4. Due to problem caused by light, water and other reasons, this mall kiosk only can be used indoor, working
voltage is 110v~240v.
5. This bill payment kiosk must work with related self payment software, right now the kiosk only can print
test page and recognize how much the money is, but what content to print and what does inserted money
for, it has no idea.

Contact us freely to get more information about this all in one cash payment kiosk machine.
Specification of All-in-one cash Payment Kiosk Machine/Bill Payment Kiosk
Computer Parts
PC host
(can be customized)
Mainboard: Industrial motherboard, CPU: Intel 1037U, 1.8 GHZ
RAM: DDR3 1333 4GB; Hard Disk: 500GB, 7200R, SSD available
RS-232 Ports, RJ45 interface, 2 cooling fan
4 USB Ports,1 10/100M Net Port
2 LTP; Data Cable; Power Cable; Newtwork Cable
Integrated disply card, Net Card, Sound Card, Video board embed.
19.1 inch
100% new Grade A+ TFT LCD or LED
Brightness: 350cd/m2 Hardness: Moh'S 3
Contrast: 1000:1 Lifelong: more than 50 000 hours
Max(native). Resolution: 1280x1024
Response Time:10ms;Dot pitch: 0.297;VGA interface
Touch Panel
Durability: Scratch-free, more than 50,000,000 touches without failure
antirust, anti-acid, anti-dust, water proof, anti-vandal
Thickness: 3mm; Resolution: 4096×4096; Light Transmit: 95%
Surface Hardness: Mohs' hardness rating of 7
Response Time: 5ms; Interface: USB
Durable 1.5mm cold rolled steel frame, painting color optional
Ergonomically sleek and smart design
Easy to install and operate with drawers
Internal fans for ventilation
Left and right bi-channel; amplified output; Multimedia speaker
Moistureproof, Antirust, Anti-acid, Static free
Extra device for     bill payment kiosk
Thermal printer, 80mm paper to print, photo print available.
bill acceptor
banknote acceptor which supports most of currencies, with cash
storage box
Extra device for bill payment kiosk
Door sensor
Customized sensor to show the status of the on&off kiosk door
3G route&UPS
3G route with GPS function&UPS, backup time(about half an hour)
Operating system
Windows 7 or Windows 10.
Production Time
15~20 working days after deposite confirmed
Safty Wooden case for exporting
Warranty and MOQ
1 Year, aftersale online service forever. MOQ: 1 piece
Payment Terms
50% Deposit, 50% balance T/T before shipment.
Product Show

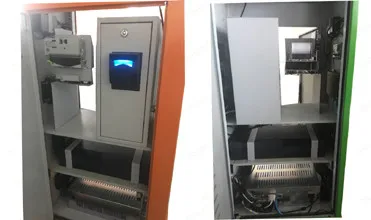

How the payment kiosk machine looks like

inside of the kiosk body?

This picture shows that inside of the kiosk case, how it looks like for every part. Here the payment machine is only with banknote acceptor and thermal printer, coin acceptor&card reader are avaialble, so does wall mounted payment kiosk idea with different prices.

 Supplementary specification of this touch kiosk:

1. The infrared touch panel is two-point touch, if need more point touch, its available.

2.. With multimedia function,  you can set all in one kiosk to display advertising during the period that

nobody using it.

3. Other model kiosk machine for sale, you are welcome to inform us about the kiosk idea you prefer, we

will design new similarall-in-one paymentl kiosk for you.

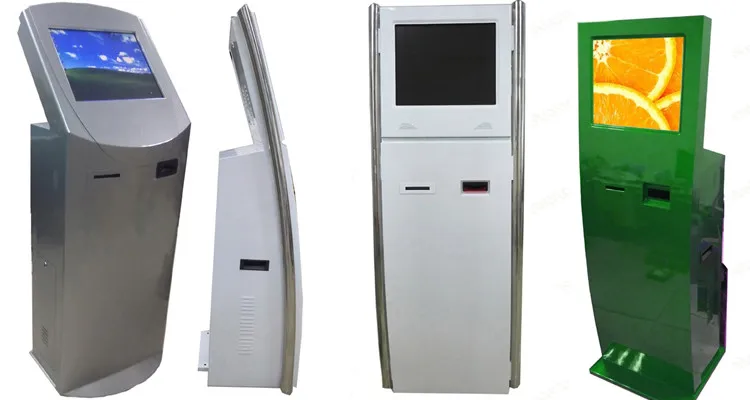

Similar all-in one payment kiosk design with bill acceptor and thermal printer:

Photos of other bill payment kiosk design with more devices, customized design&Idea are welcome.


1.Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3.Non-profit Organizations: Telecommunications, post offices, hospital, schools
4.Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,

stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers
6.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet

bars, beauty shops, golf course.

About Us

Our History starts from 2003.

List of some of our clients

Factory and workshop



Our Factory


Our Workshop

Semi-finished kiosk case



Q: Are you trading company or manufacturer of kiosk ?

A: We are kiosk case manufacturer&factory and have our own kiosk assemble workshop. Our factory located at Songgang, Shenzhen,

Q: How long is your delivery time?

A: Generally it is about one month after deposit for sample.

Q: Do you provide samples ? is it free or extra ?

A:  Because our MOQ is one piece, and most of our kiosk are customized design, free sample is not available.

Q: What is your terms of payment ?

A: T/T,  Paypal, Wester Union and Trade Assurance are welcome. Usually 50% of the totdal payment as deposit, rest to be balance before delivery

Q: How long is your Gurranty Period?

A: Normally the warranty period is one year dated from delivery, during this period, if there is any part cant work, we will help you to

fix it, or delivery you replacement for free. In case of that you need longer warranty period,  extra cost for warranty delay is need.
